Improvements in models over copying from templates. Target: T0949-D1
Results Home Table Browser Estimate of Model Accuracy Results RR Assessment Results
  Tables   GDT Plots   Local Accuracy   Position-specific alignment   Templates   Help

Selected templates/models  |  Models strip charts  |  Templates strip charts
Models / 25 Best templates vs targets CA-CA distances
View: Templates Model Difference

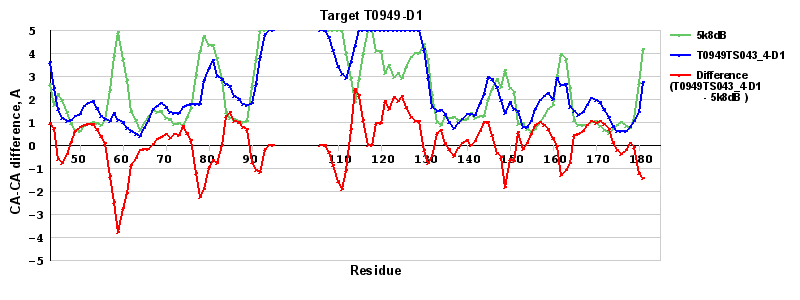

Green line: distance between the aligned CA atoms in a template and the experimental structure in the LGA sequence-independent superposition under the 5A distance cutoff (see LGA description).
Blue line: distance between the corresponding CA atoms in a model and the experimental structure in the LGA sequence-independent superposition under the 5A distance cutoff.
Red line = (blue line) - (green thick line): difference between the corresponding Model-Target and Template-Target CA-CA distances (see above). Negative values show regions where a model has better fit to the target than the template, i.e. areas of potential improvement over the template.
Thin lines: other templates
The plot above is generated applying the moving average method with window of 3 positions.
Color gamma <-5 (-5; -2) (-2; -0.5) (-0.5; 0.5) (0.5; 2) (2; 5) >5 or N/A
Differences percentage0.0%10.1%10.1%41.1%32.6%6.2%0.0%
Radio buttons select the template for which difference is calculated

Checkboxes select template for visualization in the graph

* the best template selected by assessors

Top 25 Templates
  #TemplatesLGA_SRMSD
1 5k8dB 72.878 1.7
2 2r7eB 72.691 1.67
3 5n4lB 72.007 1.67
4 3cdzB 71.691 1.86
5 4bdvB 71.347 1.79
6 3j2qB 71.24 1.83
7 4yvnA 70.519 1.85
8 5lhlE 70.164 1.85
9 5g3hA 70.106 1.69
10 5o4qH 70.05 1.85
11 2yaqA 70.048 1.68
12 3cg8B 70.043 1.86
13 2yaeA 70.014 1.69
14 2yahA 70.014 1.69
15 5o3kD 70.012 1.84
16 5g3gA 69.991 1.69
17 5k0dA 69.991 1.69
18 5k5kA 69.991 1.69
19 5jx9A 69.96 1.69
20 2yamA 69.953 1.69
21 5k15A 69.936 1.69
22 5k84A 69.933 1.69
23 2yapA 69.929 1.69
24 5afaA 69.929 1.7
25 3t9wA* 69.92 1.81
Models
 #NameLGA_SRMSDGDT_TS
1 T0949TS043_4-D1 64.687 1.91 66.28
2 T0949TS246_2-D1 63.072 1.84 65.31
3 T0949TS324_3-D1 63.706 1.92 65.31
4 T0949TS246_3-D1 62.325 1.80 64.92
5 T0949TS044_1-D1 60.661 1.76 64.53
6 T0949TS221_1-D1 60.661 1.76 64.53
7 T0949TS418_3-D1 60.661 1.76 64.53
8 T0949TS406_1-D1 60.661 1.76 64.53
9 T0949TS446_2-D1 60.661 1.76 64.53
10 T0949TS224_4-D1 73.966 1.91 64.34
11 T0949TS149_2-D1 61.396 1.86 64.34
12 T0949TS324_5-D1 75.694 1.95 64.34
13 T0949TS324_4-D1 73.966 1.91 64.34
14 T0949TS246_1-D1 72.906 1.86 64.15
15 T0949TS322_3-D1 62.18 1.79 63.95
16 T0949TS089_3-D1 62.221 1.94 63.95
17 T0949TS043_3-D1 62.451 2.00 63.76
18 T0949TS043_2-D1 61.606 1.93 63.76
19 T0949TS197_5-D1 64.101 1.82 63.57
20 T0949TS241_2-D1 60.356 1.83 63.37
21 T0949TS344_5-D1 63.478 1.90 63.18
22 T0949TS089_4-D1 63.125 1.92 63.18
23 T0949TS324_2-D1 63.478 1.90 63.18
24 T0949TS324_1-D1 62.584 1.97 62.98
25 T0949TS135_5-D1 62.584 1.97 62.98
26 T0949TS196_4-D1 62.584 1.97 62.98
27 T0949TS441_1-D1 62.581 1.88 62.98
28 T0949TS071_4-D1 62.584 1.97 62.98
29 T0949TS322_2-D1 64.371 1.71 62.79
30 T0949TS208_5-D1 60.506 1.87 62.79
31 T0949TS043_5-D1 60.786 1.99 62.60
32 T0949TS279_2-D1 65.734 1.90 62.60
33 T0949TS197_1-D1 72.946 1.83 62.60
34 T0949TS023_4-D1 61.426 1.89 62.60
35 T0949TS322_4-D1 71.117 1.82 62.40
36 T0949TS197_3-D1 73.936 1.81 62.40
37 T0949TS390_5-D1 62.516 1.89 62.40
38 T0949TS354_2-D1 61.109 1.81 62.21
39 T0949TS117_1-D1 61.342 1.93 62.21
40 T0949TS441_3-D1 67.627 1.93 62.21
41 T0949TS322_1-D1 73.803 1.82 62.21
42 T0949TS116_5-D1 61.389 1.95 62.21
43 T0949TS149_3-D1 62.042 1.98 62.02
44 T0949TS145_4-D1 71.44 1.79 62.02
45 T0949TS441_4-D1 60.2 1.94 62.02
46 T0949TS322_5-D1 62.93 1.93 62.02
47 T0949TS145_1-D1 62.261 1.76 61.82
48 T0949TS044_2-D1 62.261 1.76 61.82
49 T0949TS197_2-D1 72.487 1.86 61.82
50 T0949TS244_1-D1 62.261 1.76 61.82
51 T0949TS197_4-D1 62.707 1.79 61.82
52 T0949TS426_2-D1 62.261 1.76 61.82
53 T0949TS089_1-D1 61.869 1.89 61.63
54 T0949TS457_3-D1 65.634 2.05 61.63
55 T0949TS279_4-D1 61.288 1.80 61.63
56 T0949TS149_1-D1 60.112 1.89 61.63
57 T0949TS043_1-D1 61.802 1.92 61.63
58 T0949TS261_5-D1 60.442 1.80 61.63
59 T0949TS457_4-D1 70.743 1.78 61.63
60 T0949TS089_2-D1 61.785 1.84 61.63
61 T0949TS279_1-D1 70.149 1.94 61.43
62 T0949TS222_5-D1 61.589 1.97 61.43
63 T0949TS149_4-D1 60.246 1.75 61.24
64 T0949TS222_2-D1 60.362 1.90 61.24
65 T0949TS246_4-D1 59.887 1.96 61.24
66 T0949TS246_5-D1 59.887 1.96 61.24
67 T0949TS214_4-D1 61.351 1.89 61.24
68 T0949TS164_5-D1 61.558 1.95 61.24
69 T0949TS208_1-D1 60.377 1.92 61.24
70 T0949TS279_3-D1 60.262 1.95 61.05
71 T0949TS208_3-D1 59.982 2.08 61.05
72 T0949TS390_3-D1 62.39 1.76 61.05
73 T0949TS222_3-D1 60.367 1.83 60.85
74 T0949TS347_1-D1 59.326 2.01 60.85
75 T0949TS071_5-D1 59.326 2.01 60.85
76 T0949TS222_4-D1 60.545 1.92 60.85
77 T0949TS196_5-D1 59.326 2.01 60.85
78 T0949TS329_3-D1 61.975 1.76 60.85
79 T0949TS135_4-D1 59.326 2.01 60.85
80 T0949TS243_4-D1 60.458 2.02 60.85
81 T0949TS243_5-D1 58.776 1.98 60.85
82 T0949TS309_3-D1 59.326 2.01 60.85
83 T0949TS344_1-D1 62.392 1.96 60.85
84 T0949TS058_3-D1 60.508 2.02 60.66
85 T0949TS274_2-D1 61.083 1.78 60.66
86 T0949TS426_4-D1 60.351 1.90 60.66
87 T0949TS446_3-D1 60.351 1.90 60.66
88 T0949TS055_1-D1 60.351 1.90 60.66
89 T0949TS344_2-D1 61.915 1.96 60.66
90 T0949TS368_2-D1 60.351 1.90 60.66
91 T0949TS418_5-D1 60.351 1.90 60.66
92 T0949TS243_1-D1 67.309 1.92 60.47
93 T0949TS058_2-D1 67.309 1.92 60.47
94 T0949TS274_1-D1 61.726 1.75 60.47
95 T0949TS208_4-D1 59.95 1.95 60.27
96 T0949TS354_1-D1 71.688 1.93 60.27
97 T0949TS023_1-D1 62.473 1.93 60.27
98 T0949TS446_5-D1 60.021 1.89 60.27
99 T0949TS266_1-D1 60.021 1.89 60.27
100 T0949TS241_4-D1 61.747 1.91 60.27
101 T0949TS347_4-D1 59.838 2.00 60.27
102 T0949TS274_5-D1 61.894 1.86 60.27
103 T0949TS460_1-D1 60.279 2.01 60.08
104 T0949TS116_2-D1 71.147 1.89 60.08
105 T0949TS135_3-D1 60.621 1.95 60.08
106 T0949TS023_2-D1 60.029 1.93 60.08
107 T0949TS196_3-D1 60.621 1.95 60.08
108 T0949TS460_5-D1 60.391 2.00 60.08
109 T0949TS044_5-D1 60.621 1.95 60.08
110 T0949TS274_3-D1 61.901 1.81 60.08
111 T0949TS274_4-D1 61.901 1.81 60.08
112 T0949TS261_1-D1 60.621 1.95 60.08
113 T0949TS418_1-D1 60.621 1.95 60.08
114 T0949TS071_3-D1 60.621 1.95 60.08
115 T0949TS354_3-D1 71.58 1.94 59.88
116 T0949TS390_2-D1 58.671 2.11 59.88
117 T0949TS309_4-D1 60.302 1.98 59.88
118 T0949TS347_3-D1 60.302 1.98 59.88
119 T0949TS460_4-D1 60.429 2.00 59.88
120 T0949TS460_2-D1 60.17 2.01 59.88
121 T0949TS457_2-D1 58.179 1.86 59.50
122 T0949TS471_3-D1 64.467 1.79 59.50
123 T0949TS460_3-D1 59.723 2.02 59.50
124 T0949TS116_1-D1 61.701 1.91 59.50
125 T0949TS390_1-D1 58.426 2.12 59.50
126 T0949TS347_5-D1 58.963 2.01 59.50
127 T0949TS309_2-D1 58.963 2.01 59.50
128 T0949TS418_2-D1 60.697 1.88 59.30
129 T0949TS347_2-D1 56.696 2.05 59.30
130 T0949TS446_1-D1 60.697 1.88 59.30
131 T0949TS329_1-D1 62.947 1.74 59.30
132 T0949TS426_1-D1 60.697 1.88 59.30
133 T0949TS406_2-D1 60.697 1.88 59.30
134 T0949TS335_1-D1 57.682 2.02 59.30
135 T0949TS368_1-D1 60.697 1.88 59.30
136 T0949TS055_2-D1 60.697 1.88 59.30
137 T0949TS279_5-D1 56.567 1.98 59.11
138 T0949TS368_3-D1 69.613 1.92 59.11
139 T0949TS344_4-D1 69.613 1.92 59.11
140 T0949TS354_5-D1 59.457 1.96 58.91
141 T0949TS261_3-D1 59.156 1.89 58.91
142 T0949TS116_3-D1 56.953 2.02 58.91
143 T0949TS377_2-D1 56.819 1.93 58.91
144 T0949TS149_5-D1 55.37 1.99 58.91
145 T0949TS222_1-D1 59.186 2.00 58.91
146 T0949TS329_5-D1 61.861 1.97 58.91
147 T0949TS471_4-D1 60.115 1.84 58.72
148 T0949TS208_2-D1 60.753 2.05 58.53
149 T0949TS068_5-D1 56.671 1.99 58.53
150 T0949TS457_1-D1 61.282 1.90 58.53
151 T0949TS266_3-D1 57.817 2.12 58.53
152 T0949TS329_4-D1 62.526 1.90 58.33
153 T0949TS471_1-D1 55.724 1.81 58.33
154 T0949TS145_3-D1 58.867 1.91 58.33
155 T0949TS068_1-D1 57.042 2.04 58.33
156 T0949TS068_4-D1 57.486 1.88 58.33
157 T0949TS377_4-D1 56.494 2.17 58.33
158 T0949TS241_1-D1 58.955 1.81 58.14
159 T0949TS241_3-D1 56.398 1.84 58.14
160 T0949TS471_2-D1 61.063 1.99 57.95
161 T0949TS214_2-D1 57.926 2.02 57.95
162 T0949TS058_5-D1 55.06 2.04 57.95
163 T0949TS068_2-D1 57.627 1.95 57.95
164 T0949TS086_1-D1 57.248 2.06 57.75
165 T0949TS368_5-D1 55.714 2.06 57.75
166 T0949TS089_5-D1 56.794 2.02 57.75
167 T0949TS156_2-D1 55.81 1.91 57.75
168 T0949TS055_3-D1 55.714 2.06 57.75
169 T0949TS068_3-D1 55.982 2.12 57.56
170 T0949TS156_3-D1 55.68 1.87 57.36
171 T0949TS156_5-D1 55.252 1.89 57.36
172 T0949TS224_5-D1 55.68 1.87 57.36
173 T0949TS156_4-D1 53.277 1.92 57.36
174 T0949TS406_3-D1 53.277 1.92 57.36
175 T0949TS406_5-D1 55.68 1.87 57.36
176 T0949TS241_5-D1 56.944 1.86 57.36
177 T0949TS266_2-D1 57.969 1.95 57.36
178 T0949TS058_1-D1 55.872 2.06 57.36
179 T0949TS377_3-D1 56.87 2.04 57.36
180 T0949TS243_3-D1 54.861 2.04 57.36
181 T0949TS243_2-D1 56.348 1.93 57.36
182 T0949TS377_5-D1 55.681 2.06 57.17
183 T0949TS337_1-D1 54.488 2.02 56.98
184 T0949TS156_1-D1 55.58 1.88 56.98
185 T0949TS441_2-D1 54.488 2.02 56.98
186 T0949TS116_4-D1 57.465 1.96 56.98
187 T0949TS124_2-D1 52.083 2.24 56.98
188 T0949TS044_3-D1 55.58 1.88 56.98
189 T0949TS196_2-D1 52.083 2.24 56.98
190 T0949TS135_2-D1 52.083 2.24 56.98
191 T0949TS224_1-D1 53.297 2.21 56.98
192 T0949TS055_4-D1 55.58 1.88 56.98
193 T0949TS418_4-D1 55.58 1.88 56.98
194 T0949TS406_4-D1 55.58 1.88 56.98
195 T0949TS071_2-D1 52.083 2.24 56.98
196 T0949TS214_1-D1 55.893 2.12 56.59
197 T0949TS354_4-D1 55.893 2.12 56.59
198 T0949TS023_3-D1 55.157 2.12 56.59
199 T0949TS266_4-D1 54.422 1.96 56.59
200 T0949TS335_3-D1 54.23 2.04 56.59
201 T0949TS086_4-D1 55.955 2.06 56.59
202 T0949TS058_4-D1 55.781 2.11 56.40
203 T0949TS023_5-D1 53.755 2.11 56.40
204 T0949TS446_4-D1 55.196 2.13 56.40
205 T0949TS055_5-D1 55.196 2.13 56.40
206 T0949TS044_4-D1 55.196 2.13 56.40
207 T0949TS368_4-D1 55.196 2.13 56.40
208 T0949TS344_3-D1 55.196 2.13 56.40
209 T0949TS457_5-D1 57.227 2.09 56.40
210 T0949TS377_1-D1 54.256 2.14 56.01
211 T0949TS266_5-D1 59.309 1.91 56.01
212 T0949TS124_1-D1 52.393 2.26 55.81
213 T0949TS335_5-D1 53.188 2.20 55.81
214 T0949TS335_2-D1 55.313 2.13 55.81
215 T0949TS214_3-D1 52.583 2.08 55.81
216 T0949TS335_4-D1 52.348 2.13 55.62
217 T0949TS281_1-D1 54.26 2.08 55.62
218 T0949TS337_3-D1 51.949 2.20 55.43
219 T0949TS426_5-D1 61.899 1.98 55.43
220 T0949TS329_2-D1 57.311 2.08 55.43
221 T0949TS488_3-D1 61.899 1.98 55.43
222 T0949TS145_2-D1 59.586 1.92 55.23
223 T0949TS498_5-D1 52.269 2.31 55.23
224 T0949TS337_5-D1 54.554 2.17 55.23
225 T0949TS337_2-D1 53.996 2.09 55.04
226 T0949TS214_5-D1 52.187 2.20 54.84
227 T0949TS312_1-D1 58.027 1.89 54.65
228 T0949TS337_4-D1 52.809 2.09 54.65
229 T0949TS498_2-D1 51.462 2.20 54.46
230 T0949TS498_3-D1 52.715 2.19 54.46
231 T0949TS431_1-D1 53.263 2.10 54.26
232 T0949TS312_2-D1 59.132 2.03 54.07
233 T0949TS498_1-D1 51.063 2.23 53.88
234 T0949TS086_2-D1 49.229 2.19 53.88
235 T0949TS105_3-D1 55.454 1.90 53.68
236 T0949TS110_4-D1 52.854 1.86 53.68
237 T0949TS261_2-D1 58.822 1.95 53.68
238 T0949TS498_4-D1 50.557 2.31 53.68
239 T0949TS105_5-D1 54.882 1.95 53.49
240 T0949TS471_5-D1 51.318 2.23 53.30
241 T0949TS004_4-D1 52.746 1.84 53.30
242 T0949TS426_3-D1 59.525 1.96 53.10
243 T0949TS105_4-D1 54.994 2.00 53.10
244 T0949TS488_2-D1 59.525 1.96 53.10
245 T0949TS110_2-D1 53.219 1.89 53.10
246 T0949TS488_4-D1 65.023 1.97 53.10
247 T0949TS004_1-D1 49.862 2.10 53.10
248 T0949TS086_5-D1 48.831 2.27 53.10
249 T0949TS004_2-D1 52.367 2.11 52.91
250 T0949TS105_2-D1 52.264 1.89 52.71
251 T0949TS110_1-D1 57.055 2.04 52.33
252 T0949TS402_4-D1 51.011 2.10 52.33
253 T0949TS441_5-D1 47.599 2.08 52.33
254 T0949TS004_5-D1 50.589 1.94 52.33
255 T0949TS402_1-D1 51.14 2.05 52.33
256 T0949TS390_4-D1 45.844 2.22 52.33
257 T0949TS047_5-D1 53.639 2.15 52.33
258 T0949TS402_2-D1 57.708 2.04 52.33
259 T0949TS135_1-D1 46.028 2.34 52.13
260 T0949TS124_3-D1 46.028 2.34 52.13
261 T0949TS071_1-D1 46.028 2.34 52.13
262 T0949TS196_1-D1 46.028 2.34 52.13
263 T0949TS047_2-D1 51.079 2.16 51.94
264 T0949TS105_1-D1 52.963 1.87 51.94
265 T0949TS488_1-D1 55.371 2.27 51.74
266 T0949TS110_3-D1 51.036 2.12 51.74
267 T0949TS086_3-D1 49.941 2.39 51.74
268 T0949TS047_4-D1 50.782 2.17 51.55
269 T0949TS085_3-D1 54.081 2.09 51.36
270 T0949TS402_3-D1 49.6 2.14 51.16
271 T0949TS288_3-D1 45.537 2.35 50.97
272 T0949TS110_5-D1 52.657 2.04 50.97
273 T0949TS224_3-D1 44.003 2.23 50.97
274 T0949TS047_1-D1 51.143 2.15 50.58
275 T0949TS312_4-D1 57.28 1.90 50.39
276 T0949TS164_4-D1 56.429 2.09 50.39
277 T0949TS312_3-D1 57.985 1.99 50.19
278 T0949TS047_3-D1 51.534 2.15 50.19
279 T0949TS402_5-D1 46.389 2.07 50.00
280 T0949TS312_5-D1 58.804 1.89 50.00
281 T0949TS004_3-D1 54.956 2.07 49.61
282 T0949TS164_2-D1 58.514 1.85 49.61
283 T0949TS152_1-D1 46.576 2.38 49.23
284 T0949TS261_4-D1 48.007 2.34 49.23
285 T0949TS224_2-D1 45.818 2.45 48.84
286 T0949TS358_1-D1 55.13 2.08 48.06
287 T0949TS122_1-D1 44.119 2.42 47.67
288 T0949TS085_2-D1 57.956 2.00 47.67
289 T0949TS358_2-D1 54.36 2.14 47.48
290 T0949TS145_5-D1 48.815 2.14 47.29
291 T0949TS492_4-D1 43.256 2.44 47.09
292 T0949TS358_5-D1 54.903 2.08 46.51
293 T0949TS488_5-D1 58.556 2.05 46.51
294 T0949TS152_3-D1 38.213 2.74 46.12
295 T0949TS358_3-D1 52.478 2.14 45.93
296 T0949TS164_1-D1 54.698 2.13 45.93
297 T0949TS358_4-D1 50.63 2.06 45.93
298 T0949TS077_1-D1 45.878 2.45 45.74
299 T0949TS309_5-D1 53.591 2.21 45.74
300 T0949TS164_3-D1 53.591 2.21 45.74
301 T0949TS492_1-D1 40.609 2.73 45.35
302 T0949TS431_4-D1 40.349 2.37 45.16
303 T0949TS431_5-D1 40.715 2.37 45.16
304 T0949TS351_4-D1 40.725 2.41 44.96
305 T0949TS351_5-D1 40.725 2.41 44.96
306 T0949TS351_2-D1 40.725 2.41 44.96
307 T0949TS351_1-D1 40.725 2.41 44.96
308 T0949TS351_3-D1 40.725 2.41 44.96
309 T0949TS085_5-D1 47.562 2.12 44.77
310 T0949TS309_1-D1 47.562 2.12 44.77
311 T0949TS152_4-D1 40.425 2.59 44.19
312 T0949TS431_2-D1 39.673 2.48 44.19
313 T0949TS288_2-D1 37.602 2.59 43.41
314 T0949TS381_3-D1 36.879 2.62 43.41
315 T0949TS381_1-D1 37.903 2.47 43.02
316 T0949TS492_5-D1 40.529 2.57 43.02
317 T0949TS492_3-D1 44.054 2.33 42.83
318 T0949TS492_2-D1 41.277 2.45 42.64
319 T0949TS381_5-D1 38.188 2.43 42.64
320 T0949TS152_2-D1 38.274 2.62 42.05
321 T0949TS288_1-D1 39.726 2.49 41.09
322 T0949TS381_2-D1 38.155 2.51 40.70
323 T0949TS163_1-D1 38.799 2.72 40.12
324 T0949TS381_4-D1 35.423 2.64 38.37
325 T0949TS348_1-D1 34.708 2.86 38.18
326 T0949TS288_5-D1 34.511 2.75 37.21
327 T0949TS348_4-D1 33.51 2.81 36.82
328 T0949TS348_3-D1 31.292 2.79 36.63
329 T0949TS348_2-D1 34.101 2.63 35.47
330 T0949TS497_1-D1 26.289 2.29 32.95
331 T0949TS085_4-D1 57.283 1.85 31.78
332 T0949TS497_4-D1 27.06 2.75 31.59
333 T0949TS244_5-D1 27.06 2.75 31.59
334 T0949TS472_2-D1 54.366 1.95 31.39
335 T0949TS472_3-D1 55.109 1.81 31.20
336 T0949TS085_1-D1 46.013 2.14 31.01
337 T0949TS244_2-D1 46.013 2.14 31.01
338 T0949TS007_3-D1 47.473 2.14 29.07
339 T0949TS431_3-D1 24.003 2.65 28.88
340 T0949TS497_2-D1 20.137 2.76 26.74
341 T0949TS288_4-D1 26.768 2.62 26.36
342 T0949TS007_4-D1 51.16 1.98 25.97
343 T0949TS497_3-D1 20.27 2.62 24.42
344 T0949TS097_1-D1 23.256 2.77 23.84
345 T0949TS097_4-D1 25.702 2.23 21.90
346 T0949TS152_5-D1 21.194 2.55 21.70
347 T0949TS397_1-D1 37.978 2.41 21.12
348 T0949TS244_3-D1 25.446 2.59 20.54
349 T0949TS365_2-D1 23.756 2.54 20.54
350 T0949TS041_1-D1 25.446 2.59 20.54
351 T0949TS348_5-D1 20.588 2.82 20.35
352 T0949TS365_4-D1 23.522 2.23 19.77
353 T0949TS497_5-D1 14.906 2.61 19.38
354 T0949TS097_2-D1 17.821 2.78 18.80
355 T0949TS157_4-D1 16.497 2.45 18.61
356 T0949TS041_5-D1 17.42 2.69 18.02
357 T0949TS378_5-D1 16.735 2.26 17.83
358 T0949TS097_5-D1 24.289 2.43 17.83
359 T0949TS401_3-D1 18.446 2.72 17.64
360 T0949TS365_1-D1 13.12 2.79 17.64
361 T0949TS365_3-D1 20.113 2.49 17.44
362 T0949TS041_3-D1 22.029 2.36 17.05
363 T0949TS157_5-D1 17.1 2.38 16.86
364 T0949TS097_3-D1 18.933 2.68 16.28
365 T0949TS365_5-D1 13.206 2.58 15.50
366 T0949TS401_1-D1 21.564 2.68 15.31
367 T0949TS378_3-D1 17.663 2.54 15.12
368 T0949TS041_4-D1 9.27 2.78 15.12
369 T0949TS041_2-D1 16.303 2.66 14.92
370 T0949TS401_4-D1 17.06 2.68 14.92
371 T0949TS472_4-D1 39.933 1.78 14.54
372 T0949TS472_5-D1 39.257 2.01 14.54
373 T0949TS472_1-D1 38.75 2.04 13.95
374 T0949TS378_2-D1 14.646 2.48 13.95
375 T0949TS378_1-D1 15.227 2.47 13.76
376 T0949TS007_1-D1 16.539 2.42 13.76
377 T0949TS401_5-D1 15.733 2.59 13.57
378 T0949TS401_2-D1 18.032 2.47 13.57
379 T0949TS244_4-D1 19.661 2.52 13.57
380 T0949TS157_2-D1 12.895 3.01 13.57
381 T0949TS007_2-D1 19.661 2.52 13.57
382 T0949TS157_1-D1 16.483 2.55 12.98
383 T0949TS378_4-D1 13.736 2.70 12.79
384 T0949TS157_3-D1 16.106 2.85 12.79
385 T0949TS476_5-D1 16.433 2.64 12.40
386 T0949TS007_5-D1 21.423 2.55 12.02
387 T0949TS257_4-D1 11.091 2.17 11.43
388 T0949TS476_3-D1 10.179 2.94 11.05
389 T0949TS257_2-D1 12.07 1.91 11.05
390 T0949TS476_1-D1 17.824 2.33 10.85
391 T0949TS257_1-D1 13.387 1.85 10.85
392 T0949TS257_5-D1 9.336 2.27 10.85
393 T0949TS476_2-D1 13.657 2.77 10.66
394 T0949TS257_3-D1 8.444 2.61 10.66
395 T0949TS476_4-D1 14.514 2.70 10.46
Difference model - template
# Templates
1 5k8dB
2 2r7eB
3 5n4lB
4 3cdzB
5 4bdvB
6 3j2qB
7 4yvnA
8 5lhlE
9 5g3hA
10 5o4qH
11 2yaqA
12 3cg8B
13 2yaeA
14 2yahA
15 5o3kD
16 5g3gA
17 5k0dA
18 5k5kA
19 5jx9A
20 2yamA
21 5k15A
22 5k84A
23 2yapA
24 5afaA
25 3t9wA*
Protein Structure Prediction Center
Sponsored by the US National Institute of General Medical Sciences (NIH/NIGMS)
Please address any questions or queries to:
© 2007-2018, University of California, Davis
