Improvements in models over copying from templates. Target: T1042-D1
Results Home Table Browser Estimate of Model Accuracy Results RR Assessment Results
  Tables   GDT Plots   Local Accuracy   Position-specific alignment   Templates   Help

Selected templates/models  |  Models strip charts  |  Templates strip charts
Models / 25 Best templates vs targets CA-CA distances
View: Templates Model Difference

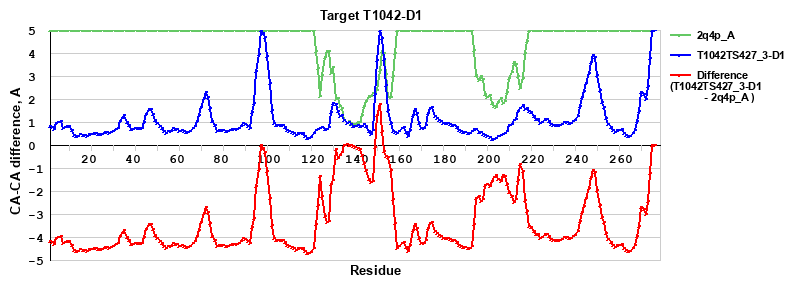

Green line: distance between the aligned CA atoms in a template and the experimental structure in the LGA sequence-independent superposition under the 5A distance cutoff (see LGA description).
Blue line: distance between the corresponding CA atoms in a model and the experimental structure in the LGA sequence-independent superposition under the 5A distance cutoff.
Red line = (blue line) - (green thick line): difference between the corresponding Model-Target and Template-Target CA-CA distances (see above). Negative values show regions where a model has better fit to the target than the template, i.e. areas of potential improvement over the template.
Thin lines: other templates
The plot above is generated applying the moving average for 3-residue window.
Color gamma <-5 (-5; -2) (-2; -0.5) (-0.5; 0.5) (0.5; 2) (2; 5) >5 or N/A
Differences percentage0.0%78.6%13.0%7.6%0.0%0.7%0.0%
Radio buttons select the template for which difference is calculated

Checkboxes select template for visualization in the graph

* the best template selected by assessors

Top 25 Templates
  #TemplatesLGA_SRMSD
1 2q4p_A 15.496 2.17
2 2a3q_B 15.274 2.13
3 2vml_G 15.271 2.36
4 4v66_AH 15.048 1.88
5 5mmj_o 15.043 1.83
6 2luh_A 15.019 2.31
7 5mmm_o 14.998 2.02
8 2vjr_A 14.965 2.36
9 5t6r_u 14.898 2.08
10 5i4l_O5 14.89 2.17
11 5uym_O 14.865 2.01
12 6ft6_h 14.86 2.29
13 5dge_o5 14.832 2.16
14 3j9w_AO 14.826 2.02
15 6htq_o 14.792 2.36
16 5fcj_O5 14.79 2.19
17 4u3m_o5 14.763 2.15
18 5t7v_S6 14.753 2.27
19 5h7p_A 14.753 2.5
20 5uyp_O 14.749 2.02
21 6t4q_Lh 14.706 2.25
22 5nd8_o 14.692 2.24
23 5lzb_o 14.682 1.98
24 5tbw_AI 14.678 2.37
25 4v74_AO 14.674 1.97
Models
 #NameLGA_SRMSDGDT_TS
1 T1042TS427_3-D1 93.791 1.22 89.49
2 T1042TS427_5-D1 93.386 1.21 88.22
3 T1042TS427_2-D1 92.083 1.44 85.42
4 T1042TS427_1-D1 91.401 1.46 84.51
5 T1042TS427_4-D1 91.114 1.45 83.61
6 T1042TS403_3-D1 66.616 2.02 61.96
7 T1042TS480_1-D1 63.177 1.97 60.96
8 T1042TS480_4-D1 60.298 1.99 59.78
9 T1042TS480_2-D1 58.927 1.98 57.25
10 T1042TS335_2-D1 58.824 1.99 56.98
11 T1042TS403_4-D1 54.878 2.25 56.70
12 T1042TS226_3-D1 55.642 2.10 56.61
13 T1042TS403_1-D1 55.257 2.19 56.43
14 T1042TS488_5-D1 57.368 2.14 56.25
15 T1042TS403_5-D1 54.284 2.27 56.16
16 T1042TS473_1-D1 51.371 2.24 55.62
17 T1042TS488_4-D1 55.859 2.16 55.52
18 T1042TS403_2-D1 51.904 2.26 55.34
19 T1042TS024_1-D1 49.681 2.13 55.25
20 T1042TS480_3-D1 59.7 2.09 55.25
21 T1042TS257_1-D1 55.345 2.13 55.07
22 T1042TS226_1-D1 55.345 2.13 55.07
23 T1042TS339_2-D1 55.345 2.13 55.07
24 T1042TS379_3-D1 54.703 2.11 54.98
25 T1042TS420_4-D1 54.607 2.09 54.98
26 T1042TS067_1-D1 54.703 2.11 54.98
27 T1042TS031_3-D1 54.703 2.11 54.98
28 T1042TS026_2-D1 55.35 2.19 54.98
29 T1042TS226_2-D1 51.676 2.17 54.98
30 T1042TS324_1-D1 55.559 2.21 54.98
31 T1042TS024_2-D1 50.01 2.15 54.89
32 T1042TS339_4-D1 54.467 2.03 54.80
33 T1042TS031_4-D1 54.467 2.03 54.80
34 T1042TS220_5-D1 51.808 2.17 54.80
35 T1042TS067_3-D1 54.467 2.03 54.80
36 T1042TS257_3-D1 54.467 2.03 54.80
37 T1042TS379_5-D1 54.467 2.03 54.80
38 T1042TS031_1-D1 54.418 2.02 54.80
39 T1042TS379_1-D1 54.621 2.10 54.71
40 T1042TS042_1-D1 54.621 2.10 54.71
41 T1042TS217_2-D1 55.194 2.13 54.71
42 T1042TS129_4-D1 55.148 2.10 54.71
43 T1042TS220_1-D1 51.139 2.30 54.62
44 T1042TS220_2-D1 51.139 2.30 54.62
45 T1042TS253_1-D1 55.331 2.13 54.53
46 T1042TS293_5-D1 54.755 2.17 54.44
47 T1042TS220_4-D1 48.836 2.27 54.26
48 T1042TS220_3-D1 51.224 2.29 54.08
49 T1042TS031_2-D1 54.081 2.18 53.80
50 T1042TS293_4-D1 53.695 2.24 53.71
51 T1042TS129_1-D1 50.721 2.35 52.54
52 T1042TS024_4-D1 50.915 2.14 52.26
53 T1042TS480_5-D1 48.561 2.30 52.08
54 T1042TS061_3-D1 47.256 2.17 51.90
55 T1042TS376_4-D1 45.664 2.38 51.81
56 T1042TS024_5-D1 51.041 2.17 51.54
57 T1042TS024_3-D1 46.399 2.17 51.18
58 T1042TS009_2-D1 48.158 2.36 50.91
59 T1042TS061_1-D1 46.307 2.36 50.91
60 T1042TS368_1-D1 49.21 2.33 50.81
61 T1042TS488_2-D1 47.917 2.34 50.54
62 T1042TS061_4-D1 46.083 2.34 50.00
63 T1042TS061_5-D1 45.815 2.28 50.00
64 T1042TS061_2-D1 46.389 2.23 49.91
65 T1042TS488_1-D1 45.226 2.27 49.00
66 T1042TS129_2-D1 49.189 2.21 49.00
67 T1042TS125_1-D1 48.049 2.19 48.73
68 T1042TS435_4-D1 47.421 2.28 48.55
69 T1042TS226_4-D1 44.343 2.36 48.37
70 T1042TS435_2-D1 43.994 2.28 48.37
71 T1042TS032_3-D1 46.329 2.27 47.55
72 T1042TS435_1-D1 43.852 2.22 47.28
73 T1042TS428_4-D1 39.994 2.48 47.01
74 T1042TS005_1-D1 39.994 2.48 47.01
75 T1042TS140_3-D1 39.994 2.48 47.01
76 T1042TS377_1-D1 41.444 2.56 46.92
77 T1042TS005_2-D1 41.444 2.56 46.92
78 T1042TS005_4-D1 41.207 2.43 46.92
79 T1042TS039_2-D1 41.444 2.56 46.92
80 T1042TS062_5-D1 41.444 2.56 46.92
81 T1042TS062_3-D1 41.207 2.43 46.92
82 T1042TS140_4-D1 41.207 2.43 46.92
83 T1042TS376_3-D1 45.443 2.29 46.83
84 T1042TS031_5-D1 41.012 2.42 46.83
85 T1042TS379_2-D1 37.975 2.53 46.74
86 T1042TS039_5-D1 37.975 2.53 46.74
87 T1042TS337_1-D1 37.975 2.53 46.74
88 T1042TS067_4-D1 45.538 2.31 46.65
89 T1042TS435_3-D1 45.538 2.31 46.65
90 T1042TS183_1-D1 40.582 2.49 46.56
91 T1042TS254_5-D1 46.426 2.23 46.56
92 T1042TS375_3-D1 40.582 2.49 46.56
93 T1042TS343_3-D1 40.582 2.49 46.56
94 T1042TS368_2-D1 39.118 2.45 46.56
95 T1042TS339_3-D1 35.977 2.56 46.38
96 T1042TS067_2-D1 35.977 2.56 46.38
97 T1042TS257_5-D1 35.977 2.56 46.38
98 T1042TS032_1-D1 40.961 2.54 46.38
99 T1042TS324_2-D1 35.977 2.56 46.38
100 T1042TS039_1-D1 40.081 2.41 46.01
101 T1042TS140_1-D1 40.081 2.41 46.01
102 T1042TS005_3-D1 40.081 2.41 46.01
103 T1042TS376_5-D1 38.918 2.36 45.92
104 T1042TS420_3-D1 39.083 2.53 45.83
105 T1042TS062_1-D1 38.004 2.63 45.20
106 T1042TS377_3-D1 38.004 2.63 45.20
107 T1042TS039_3-D1 39.387 2.51 45.02
108 T1042TS460_1-D1 39.387 2.51 45.02
109 T1042TS009_1-D1 31.081 2.57 44.93
110 T1042TS339_5-D1 44.267 2.34 44.56
111 T1042TS067_5-D1 44.267 2.34 44.56
112 T1042TS257_4-D1 44.267 2.34 44.56
113 T1042TS435_5-D1 44.267 2.34 44.56
114 T1042TS377_5-D1 35.253 2.58 44.48
115 T1042TS362_1-D1 33.249 2.65 44.38
116 T1042TS362_3-D1 34.397 2.54 43.84
117 T1042TS377_2-D1 38.764 2.52 43.66
118 T1042TS062_4-D1 38.764 2.52 43.66
119 T1042TS254_2-D1 34.861 2.49 43.48
120 T1042TS304_1-D1 37.539 2.48 43.30
121 T1042TS254_4-D1 43.683 2.06 43.21
122 T1042TS032_5-D1 36.943 2.58 43.21
123 T1042TS075_5-D1 41.459 2.39 43.12
124 T1042TS140_2-D1 35.193 2.58 43.12
125 T1042TS129_3-D1 40.604 2.30 42.94
126 T1042TS009_3-D1 36.052 2.42 42.94
127 T1042TS042_3-D1 34.759 2.66 42.84
128 T1042TS254_1-D1 32.441 2.48 42.75
129 T1042TS198_2-D1 41.508 2.27 42.03
130 T1042TS015_5-D1 38.992 2.38 41.67
131 T1042TS198_4-D1 39.673 2.32 41.67
132 T1042TS075_4-D1 38.992 2.38 41.67
133 T1042TS377_4-D1 36.172 2.57 41.58
134 T1042TS129_5-D1 39.586 2.26 41.58
135 T1042TS198_1-D1 39.416 2.34 41.58
136 T1042TS075_3-D1 39.697 2.31 41.49
137 T1042TS362_2-D1 31.421 2.53 41.40
138 T1042TS192_5-D1 39.435 2.34 41.40
139 T1042TS032_2-D1 38.954 2.45 41.21
140 T1042TS351_1-D1 28.091 2.62 40.85
141 T1042TS288_4-D1 28.091 2.62 40.85
142 T1042TS375_2-D1 28.091 2.62 40.85
143 T1042TS015_3-D1 28.091 2.62 40.85
144 T1042TS198_5-D1 38.085 2.39 40.85
145 T1042TS409_1-D1 37.365 2.47 40.85
146 T1042TS075_1-D1 37.365 2.47 40.85
147 T1042TS498_1-D1 28.091 2.62 40.85
148 T1042TS368_3-D1 28.091 2.62 40.85
149 T1042TS009_4-D1 35.356 2.33 40.58
150 T1042TS198_3-D1 36.464 2.52 40.58
151 T1042TS075_2-D1 38.867 2.31 40.31
152 T1042TS376_2-D1 37.694 2.39 40.04
153 T1042TS351_3-D1 36.93 2.35 38.95
154 T1042TS343_5-D1 36.93 2.35 38.95
155 T1042TS498_5-D1 36.93 2.35 38.95
156 T1042TS375_4-D1 36.93 2.35 38.95
157 T1042TS254_3-D1 35.515 2.07 38.86
158 T1042TS376_1-D1 35.701 2.40 38.59
159 T1042TS319_3-D1 29.425 2.68 38.23
160 T1042TS420_2-D1 30.568 2.57 38.13
161 T1042TS005_5-D1 31.605 2.43 38.04
162 T1042TS062_2-D1 31.605 2.43 38.04
163 T1042TS140_5-D1 31.605 2.43 38.04
164 T1042TS009_5-D1 33.104 2.63 37.86
165 T1042TS238_1-D1 33.104 2.63 37.86
166 T1042TS288_1-D1 36.42 2.32 37.77
167 T1042TS498_4-D1 33.104 2.63 37.77
168 T1042TS238_2-D1 37.486 2.48 37.59
169 T1042TS375_5-D1 37.486 2.48 37.59
170 T1042TS032_4-D1 30.967 2.53 37.50
171 T1042TS351_2-D1 23.946 2.76 37.50
172 T1042TS351_5-D1 30.998 2.49 37.23
173 T1042TS488_3-D1 33.741 2.28 36.87
174 T1042TS238_4-D1 26.562 2.76 36.50
175 T1042TS304_4-D1 30.443 2.56 36.05
176 T1042TS238_3-D1 33.71 2.37 35.78
177 T1042TS368_4-D1 33.71 2.37 35.78
178 T1042TS343_4-D1 33.71 2.37 35.78
179 T1042TS498_2-D1 33.71 2.37 35.78
180 T1042TS015_1-D1 33.71 2.37 35.78
181 T1042TS375_1-D1 33.71 2.37 35.78
182 T1042TS252_2-D1 32.711 2.39 34.96
183 T1042TS304_5-D1 35.289 1.92 34.60
184 T1042TS125_3-D1 31.831 2.30 34.60
185 T1042TS420_1-D1 33.805 2.19 34.51
186 T1042TS125_4-D1 39.245 1.91 34.24
187 T1042TS200_1-D1 32.66 2.46 34.24
188 T1042TS187_5-D1 32.66 2.46 34.24
189 T1042TS379_4-D1 32.66 2.46 34.24
190 T1042TS253_3-D1 34.04 2.29 34.24
191 T1042TS216_1-D1 32.66 2.46 34.24
192 T1042TS252_1-D1 34.154 2.17 34.06
193 T1042TS319_2-D1 34.154 2.17 34.06
194 T1042TS187_4-D1 31.721 2.39 34.06
195 T1042TS042_2-D1 29.058 2.19 33.97
196 T1042TS252_3-D1 33.9 2.20 33.97
197 T1042TS319_1-D1 29.54 2.23 33.97
198 T1042TS319_4-D1 33.9 2.20 33.97
199 T1042TS187_2-D1 33.166 2.14 33.97
200 T1042TS420_5-D1 33.265 2.21 33.79
201 T1042TS252_5-D1 34.049 2.03 33.15
202 T1042TS187_1-D1 31.039 2.11 33.06
203 T1042TS428_1-D1 31.039 2.11 33.06
204 T1042TS187_3-D1 33.774 2.06 32.97
205 T1042TS252_4-D1 27.389 2.25 32.25
206 T1042TS183_2-D1 26.505 2.53 31.79
207 T1042TS368_5-D1 26.505 2.53 31.79
208 T1042TS319_5-D1 25.502 2.40 30.89
209 T1042TS473_3-D1 32.335 1.87 29.80
210 T1042TS473_4-D1 32.121 1.89 29.80
211 T1042TS428_5-D1 25.767 2.34 29.26
212 T1042TS070_4-D1 25.767 2.34 29.26
213 T1042TS193_5-D1 26.91 2.38 28.62
214 T1042TS070_5-D1 24.264 2.27 28.35
215 T1042TS473_2-D1 26.154 2.19 27.72
216 T1042TS070_3-D1 25.244 2.50 27.36
217 T1042TS304_2-D1 25.592 2.44 26.45
218 T1042TS125_5-D1 24.062 2.20 25.91
219 T1042TS460_4-D1 26.087 2.36 25.36
220 T1042TS343_1-D1 25.525 2.14 25.27
221 T1042TS238_5-D1 25.525 2.14 25.27
222 T1042TS324_5-D1 24.954 2.31 25.27
223 T1042TS324_3-D1 24.406 2.36 25.18
224 T1042TS226_5-D1 23.271 2.14 24.09
225 T1042TS200_5-D1 23.271 2.14 24.09
226 T1042TS042_4-D1 24.433 2.50 23.55
227 T1042TS003_1-D1 24.75 2.09 22.64
228 T1042TS324_4-D1 20.851 2.22 21.92
229 T1042TS042_5-D1 18.525 2.38 19.93
230 T1042TS071_2-D1 16.777 2.45 19.48
231 T1042TS460_2-D1 16.857 2.31 19.02
232 T1042TS326_5-D1 16.712 2.34 18.12
233 T1042TS392_1-D1 16.471 2.54 18.02
234 T1042TS026_5-D1 14.127 2.62 17.75
235 T1042TS222_3-D1 14.127 2.62 17.75
236 T1042TS222_4-D1 15.984 2.42 17.57
237 T1042TS222_1-D1 17.512 2.40 17.39
238 T1042TS125_2-D1 16.738 2.42 17.39
239 T1042TS026_1-D1 17.512 2.40 17.39
240 T1042TS326_2-D1 18.033 2.18 17.30
241 T1042TS367_4-D1 17.395 2.19 17.30
242 T1042TS101_2-D1 14.48 2.64 17.21
243 T1042TS326_3-D1 16.414 2.30 17.21
244 T1042TS367_1-D1 13.521 2.61 17.21
245 T1042TS101_5-D1 13.484 2.63 17.12
246 T1042TS328_4-D1 14.647 2.63 17.03
247 T1042TS071_1-D1 15.947 2.43 16.94
248 T1042TS071_5-D1 18.265 2.29 16.94
249 T1042TS101_3-D1 17.893 2.28 16.94
250 T1042TS101_1-D1 18.274 2.36 16.85
251 T1042TS367_2-D1 18.153 2.21 16.85
252 T1042TS468_2-D1 15.343 2.31 16.85
253 T1042TS468_1-D1 17.137 2.14 16.85
254 T1042TS367_3-D1 12.647 2.25 16.76
255 T1042TS460_5-D1 16.542 2.36 16.76
256 T1042TS039_4-D1 17.831 2.24 16.76
257 T1042TS326_1-D1 17.831 2.24 16.76
258 T1042TS026_3-D1 15.731 2.42 16.58
259 T1042TS217_3-D1 17.097 2.28 16.58
260 T1042TS222_2-D1 15.731 2.42 16.58
261 T1042TS071_3-D1 16.516 2.26 16.39
262 T1042TS487_4-D1 13.912 2.51 16.30
263 T1042TS367_5-D1 16.32 2.19 16.21
264 T1042TS392_3-D1 15.13 2.06 15.94
265 T1042TS392_2-D1 11.026 2.94 15.85
266 T1042TS328_1-D1 14.702 2.67 15.76
267 T1042TS183_3-D1 16.662 2.32 15.76
268 T1042TS360_4-D1 20.713 2.54 15.67
269 T1042TS026_4-D1 18.599 2.14 15.58
270 T1042TS326_4-D1 15.572 2.55 15.40
271 T1042TS392_5-D1 16.298 2.28 15.40
272 T1042TS183_4-D1 14.396 2.72 15.31
273 T1042TS328_5-D1 15.16 2.38 15.22
274 T1042TS217_4-D1 18.301 2.18 15.13
275 T1042TS337_3-D1 14.315 2.36 15.04
276 T1042TS328_3-D1 13.335 2.79 15.04
277 T1042TS200_3-D1 14.315 2.36 15.04
278 T1042TS453_4-D1 17.916 2.43 14.95
279 T1042TS301_5-D1 14.738 2.79 14.86
280 T1042TS342_3-D1 12.84 2.65 14.76
281 T1042TS487_3-D1 12.569 2.47 14.76
282 T1042TS487_1-D1 11.703 2.76 14.76
283 T1042TS342_5-D1 13.755 2.25 14.76
284 T1042TS453_3-D1 17.078 2.63 14.67
285 T1042TS448_1-D1 17.29 2.51 14.58
286 T1042TS209_1-D1 13.46 2.84 14.58
287 T1042TS337_2-D1 13.678 2.46 14.58
288 T1042TS193_1-D1 13.448 2.81 14.58
289 T1042TS209_3-D1 14.5 2.50 14.58
290 T1042TS473_5-D1 13.46 2.84 14.58
291 T1042TS193_2-D1 13.306 2.71 14.49
292 T1042TS250_5-D1 14.028 2.45 14.49
293 T1042TS314_1-D1 13.144 2.69 14.49
294 T1042TS192_2-D1 14.142 2.36 14.49
295 T1042TS453_2-D1 14.355 2.54 14.49
296 T1042TS487_2-D1 13.716 2.34 14.49
297 T1042TS335_3-D1 13.673 2.46 14.40
298 T1042TS453_1-D1 12.581 2.40 14.40
299 T1042TS018_2-D1 16.372 2.36 14.31
300 T1042TS328_2-D1 13.523 2.56 14.31
301 T1042TS013_5-D1 14.256 2.69 14.22
302 T1042TS314_2-D1 14.864 2.56 14.22
303 T1042TS334_1-D1 13.579 2.69 14.13
304 T1042TS018_5-D1 15.048 2.62 14.13
305 T1042TS314_5-D1 15.014 2.35 14.13
306 T1042TS342_1-D1 14.859 2.52 14.13
307 T1042TS097_3-D1 13.347 2.24 14.04
308 T1042TS337_5-D1 13.417 2.33 14.04
309 T1042TS337_4-D1 13.291 2.41 14.04
310 T1042TS301_1-D1 11.417 2.78 13.95
311 T1042TS018_3-D1 12.471 2.79 13.95
312 T1042TS250_3-D1 14.062 2.50 13.95
313 T1042TS342_4-D1 14.306 2.50 13.86
314 T1042TS314_4-D1 12.937 2.34 13.86
315 T1042TS351_4-D1 13.442 2.54 13.86
316 T1042TS183_5-D1 13.442 2.54 13.86
317 T1042TS334_4-D1 16.627 2.27 13.86
318 T1042TS428_3-D1 12.584 2.45 13.77
319 T1042TS192_1-D1 13.891 2.44 13.77
320 T1042TS013_2-D1 12.584 2.45 13.77
321 T1042TS013_3-D1 13.532 2.47 13.77
322 T1042TS335_5-D1 13.469 2.51 13.68
323 T1042TS453_5-D1 13.192 2.47 13.68
324 T1042TS304_3-D1 13.192 2.47 13.68
325 T1042TS334_5-D1 9.059 2.53 13.68
326 T1042TS334_3-D1 12.817 2.51 13.68
327 T1042TS209_5-D1 12.528 2.36 13.68
328 T1042TS314_3-D1 12.981 2.69 13.68
329 T1042TS018_1-D1 16.106 2.63 13.68
330 T1042TS342_2-D1 14.29 2.55 13.68
331 T1042TS334_2-D1 13.568 2.65 13.59
332 T1042TS250_4-D1 13.231 2.42 13.59
333 T1042TS428_2-D1 15.281 2.42 13.50
334 T1042TS013_1-D1 15.281 2.42 13.50
335 T1042TS015_2-D1 14.251 2.58 13.50
336 T1042TS097_1-D1 14.251 2.58 13.50
337 T1042TS097_5-D1 10.808 2.18 13.41
338 T1042TS392_4-D1 12.489 2.29 13.31
339 T1042TS209_4-D1 13.009 2.48 13.31
340 T1042TS335_4-D1 12.212 2.75 13.31
341 T1042TS317_4-D1 14.352 3.00 13.31
342 T1042TS335_1-D1 14.702 2.60 13.13
343 T1042TS097_2-D1 15.505 2.27 13.13
344 T1042TS487_5-D1 16.06 2.43 13.04
345 T1042TS460_3-D1 12.937 2.70 12.95
346 T1042TS192_3-D1 13.235 2.36 12.95
347 T1042TS301_3-D1 14.851 2.69 12.86
348 T1042TS339_1-D1 12.148 2.39 12.77
349 T1042TS257_2-D1 12.148 2.39 12.77
350 T1042TS138_2-D1 12.148 2.39 12.77
351 T1042TS317_3-D1 12.917 2.50 12.59
352 T1042TS301_2-D1 12.507 2.69 12.59
353 T1042TS317_5-D1 12.848 2.68 12.59
354 T1042TS050_1-D1 13.592 2.38 12.59
355 T1042TS278_2-D1 13.587 2.56 12.50
356 T1042TS192_4-D1 13.388 2.58 12.50
357 T1042TS360_2-D1 11.215 2.43 12.50
358 T1042TS018_4-D1 14.617 2.54 12.41
359 T1042TS317_1-D1 13.427 2.83 12.41
360 T1042TS138_4-D1 8.867 2.63 12.41
361 T1042TS301_4-D1 13.799 2.57 12.41
362 T1042TS323_5-D1 15.905 2.58 12.32
363 T1042TS476_2-D1 13.095 2.74 12.32
364 T1042TS343_2-D1 13.095 2.74 12.32
365 T1042TS253_5-D1 13.373 2.67 12.32
366 T1042TS071_4-D1 10.961 2.90 12.32
367 T1042TS498_3-D1 13.095 2.74 12.32
368 T1042TS278_1-D1 13.095 2.74 12.32
369 T1042TS217_5-D1 13.399 2.24 12.23
370 T1042TS317_2-D1 13.668 2.49 12.23
371 T1042TS096_1-D1 14.523 2.69 12.14
372 T1042TS253_4-D1 12.469 2.66 12.14
373 T1042TS250_2-D1 14.122 2.40 12.14
374 T1042TS013_4-D1 7.163 2.60 12.14
375 T1042TS349_5-D1 9.227 2.88 12.05
376 T1042TS209_2-D1 13.373 2.28 12.05
377 T1042TS138_3-D1 12.272 2.54 12.05
378 T1042TS259_2-D1 12.816 2.68 11.96
379 T1042TS323_1-D1 16.274 2.59 11.96
380 T1042TS323_2-D1 16.825 2.51 11.96
381 T1042TS323_3-D1 16.298 2.46 11.96
382 T1042TS364_4-D1 12.028 2.57 11.96
383 T1042TS096_2-D1 12.674 2.68 11.96
384 T1042TS259_4-D1 13.973 2.37 11.87
385 T1042TS217_1-D1 11.505 2.93 11.87
386 T1042TS364_5-D1 11.362 2.43 11.87
387 T1042TS364_1-D1 12.854 2.68 11.87
388 T1042TS250_1-D1 14.832 2.44 11.78
389 T1042TS097_4-D1 13.817 2.48 11.78
390 T1042TS341_1-D1 11.479 2.87 11.78
391 T1042TS138_5-D1 9.384 2.93 11.69
392 T1042TS138_1-D1 12.041 2.66 11.59
393 T1042TS242_1-D1 13.464 2.48 11.50
394 T1042TS341_2-D1 14.263 2.54 11.50
395 T1042TS131_3-D1 15.644 2.57 11.50
396 T1042TS151_4-D1 12.941 2.76 11.50
397 T1042TS364_2-D1 8.011 3.01 11.50
398 T1042TS193_3-D1 13.989 2.38 11.50
399 T1042TS200_4-D1 12.941 2.76 11.50
400 T1042TS323_4-D1 15.949 2.53 11.50
401 T1042TS050_5-D1 12.25 2.19 11.50
402 T1042TS364_3-D1 9.28 2.59 11.41
403 T1042TS096_5-D1 12.609 2.85 11.41
404 T1042TS305_1-D1 9.913 2.35 11.32
405 T1042TS360_3-D1 11.011 2.80 11.32
406 T1042TS362_5-D1 15.684 2.58 11.32
407 T1042TS081_2-D1 12.185 2.62 11.23
408 T1042TS131_2-D1 14.865 2.35 11.23
409 T1042TS081_4-D1 14.034 2.45 11.23
410 T1042TS222_5-D1 13.425 2.50 11.23
411 T1042TS131_5-D1 15.031 2.58 11.23
412 T1042TS242_4-D1 11.134 2.59 11.14
413 T1042TS259_5-D1 11.338 2.86 11.14
414 T1042TS360_1-D1 11.619 2.59 11.14
415 T1042TS362_4-D1 13.788 2.44 11.05
416 T1042TS052_3-D1 12.102 2.32 10.96
417 T1042TS259_1-D1 14.324 2.71 10.96
418 T1042TS200_2-D1 12.102 2.32 10.96
419 T1042TS050_4-D1 12.162 2.34 10.96
420 T1042TS242_3-D1 11.478 2.13 10.96
421 T1042TS015_4-D1 13.29 2.32 10.96
422 T1042TS349_3-D1 7.604 2.60 10.96
423 T1042TS096_4-D1 13.358 2.51 10.96
424 T1042TS052_1-D1 12.102 2.32 10.96
425 T1042TS259_3-D1 13.29 2.32 10.96
426 T1042TS131_4-D1 14.603 2.38 10.87
427 T1042TS052_5-D1 12.102 2.32 10.87
428 T1042TS151_1-D1 14.126 2.51 10.87
429 T1042TS349_1-D1 16.294 2.55 10.87
430 T1042TS336_1-D1 12.862 2.56 10.87
431 T1042TS193_4-D1 14.169 2.23 10.78
432 T1042TS131_1-D1 14.527 2.60 10.78
433 T1042TS052_4-D1 12.102 2.32 10.78
434 T1042TS349_4-D1 16.781 2.47 10.78
435 T1042TS151_3-D1 12.578 2.24 10.69
436 T1042TS096_3-D1 13.921 2.64 10.69
437 T1042TS349_2-D1 16.425 2.60 10.69
438 T1042TS360_5-D1 12.946 2.59 10.60
439 T1042TS242_2-D1 13.077 2.67 10.60
440 T1042TS242_5-D1 12.384 2.67 10.60
441 T1042TS052_2-D1 12.548 2.33 10.60
442 T1042TS278_5-D1 11.521 2.30 10.60
443 T1042TS278_3-D1 11.601 2.43 10.51
444 T1042TS253_2-D1 15.641 2.68 10.51
445 T1042TS151_2-D1 13.053 2.47 10.51
446 T1042TS050_3-D1 10.988 2.16 10.51
447 T1042TS050_2-D1 10.988 2.16 10.51
448 T1042TS081_1-D1 15.47 2.41 10.42
449 T1042TS305_2-D1 9.576 2.71 10.42
450 T1042TS170_2-D1 12.108 2.37 10.42
451 T1042TS151_5-D1 13.663 2.64 10.33
452 T1042TS277_5-D1 10.907 2.38 10.33
453 T1042TS170_5-D1 9.206 2.54 10.33
454 T1042TS305_4-D1 11.529 2.59 10.24
455 T1042TS277_1-D1 9.347 2.57 10.14
456 T1042TS305_5-D1 11.101 2.28 10.14
457 T1042TS277_2-D1 13.564 2.16 10.05
458 T1042TS305_3-D1 11.941 2.44 10.05
459 T1042TS277_4-D1 11.962 2.72 9.87
460 T1042TS458_3-D1 10.337 2.71 9.78
461 T1042TS081_3-D1 13.516 2.51 9.78
462 T1042TS277_3-D1 12.889 2.08 9.69
463 T1042TS169_1-D1 11.751 2.52 9.69
464 T1042TS278_4-D1 7.676 2.76 9.69
465 T1042TS033_1-D1 14.471 2.56 9.60
466 T1042TS081_5-D1 12.513 2.41 9.42
467 T1042TS293_2-D1 9.879 2.47 9.15
468 T1042TS293_1-D1 10.824 2.61 9.06
469 T1042TS458_2-D1 10.827 2.85 8.97
470 T1042TS014_1-D1 9.253 2.48 8.97
471 T1042TS293_3-D1 10.172 2.53 8.97
472 T1042TS014_4-D1 10.069 2.63 8.97
473 T1042TS373_1-D1 9.33 2.31 8.88
474 T1042TS340_1-D1 11.878 2.98 8.70
475 T1042TS014_3-D1 11.421 2.38 8.70
476 T1042TS063_4-D1 12.545 2.59 8.51
477 T1042TS458_1-D1 12.118 2.78 8.42
478 T1042TS369_1-D1 13.384 2.25 8.42
479 T1042TS033_2-D1 10.524 2.80 8.42
480 T1042TS063_5-D1 10.318 2.21 8.33
481 T1042TS369_4-D1 13.485 2.38 8.33
482 T1042TS014_2-D1 9.504 2.90 8.33
483 T1042TS014_5-D1 10.464 2.53 8.15
484 T1042TS070_2-D1 9.657 2.40 8.15
485 T1042TS170_1-D1 13.977 2.49 8.06
486 T1042TS369_2-D1 11.254 2.50 7.88
487 T1042TS369_5-D1 13.009 2.58 7.88
488 T1042TS063_2-D1 9.831 2.71 7.88
489 T1042TS070_1-D1 7.93 3.04 7.88
490 T1042TS369_3-D1 10.095 2.71 7.79
491 T1042TS373_2-D1 11.926 2.46 7.70
492 T1042TS063_3-D1 11.41 2.56 7.70
493 T1042TS437_4-D1 8.604 2.39 7.61
494 T1042TS063_1-D1 10.274 2.75 7.61
495 T1042TS437_5-D1 8.379 2.72 7.61
496 T1042TS170_3-D1 13.562 2.79 7.52
497 T1042TS437_3-D1 8.844 2.64 7.52
498 T1042TS107_1-D1 12.463 2.62 7.43
499 T1042TS437_2-D1 8.607 2.51 7.43
500 T1042TS437_1-D1 7.03 2.61 7.34
501 T1042TS170_4-D1 12.226 2.85 6.43
Difference model - template
# Templates
1 2q4p_A
2 2a3q_B
3 2vml_G
4 4v66_AH
5 5mmj_o
6 2luh_A
7 5mmm_o
8 2vjr_A
9 5t6r_u
10 5i4l_O5
11 5uym_O
12 6ft6_h
13 5dge_o5
14 3j9w_AO
15 6htq_o
16 5fcj_O5
17 4u3m_o5
18 5t7v_S6
19 5h7p_A
20 5uyp_O
21 6t4q_Lh
22 5nd8_o
23 5lzb_o
24 5tbw_AI
25 4v74_AO
Protein Structure Prediction Center
Sponsored by the US National Institute of General Medical Sciences (NIH/NIGMS)
Please address any questions or queries to:
© 2007-2020, University of California, Davis
